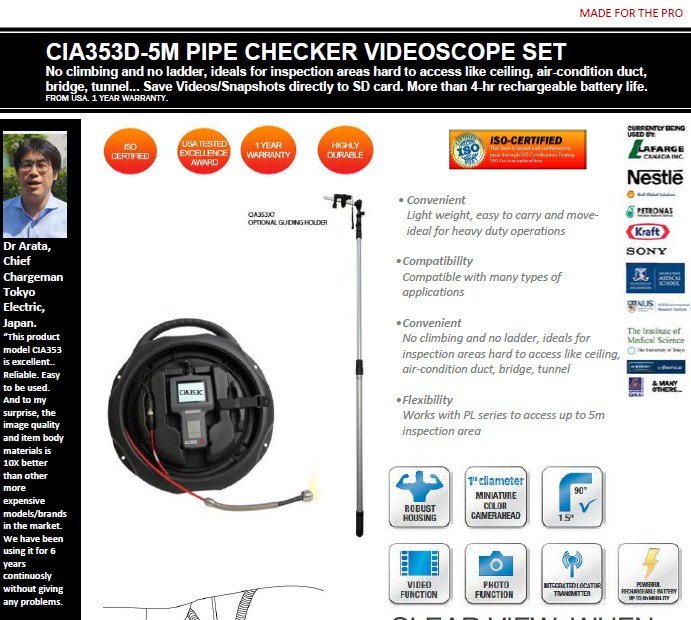

CIA353D-5M PIPE CHECKER WATER-RESISTANT PIPE DUCT VIDEOSCOPE NDT COMPLETE SET


https://www.youtube.com/watch?v=5oFRi_LIVM8


Convenient
  Light weight, easy to carry and move-ideal for heavy duty operations




Convenient
  No climbing and no ladder, ideals for inspection areas hard to access like ceiling, air-condition duct, bridge, tunnel

Flexibility
  Works with PL series to access up to 5m inspection area
Specifications:
  Dimension   490 x 450 x 60mm
  Weight   1.2kg (case only)

2.2kg (w/ 10m tube)

  Tube length   10m
  Probe diameter   6mm
  Camera head diameter   28mm
  DOF   10mm~
  FOV   150.8゚(Diagonal)
  Lighting   8 x white LEDs
  Working temperature   -10゚C~60゚C
  Waterproof / Depth   IP68 (10m)
  Applicable pipe size (mm)   ø40mm ~ ø100mm
Specifications-PL:
  Length   120~503cm (main pole only)
  Weight   1275g (w/o flashlight)
  Probe holding pole   angle adjustable
  Flashlight   IP55 protection
