Single-Range 500V/1000MΩ Analog Insulation Resistance Tester

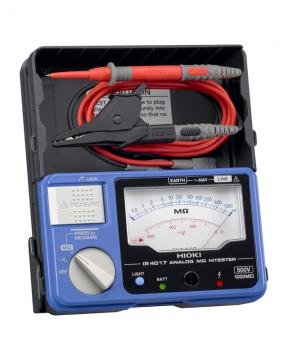

Hioki insulation resistance testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4017-20 is a single-range, 500V/1000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.
Single range testing voltage of 500 V
• Test insulation resistance up to 1000 MΩ
• Built tough to withstand a 1-meter drop onto a concrete floor
• Bright LED luminous scale
• Check for live circuits and battery status
• Integrated hard case for quick and easy storage without disconnecting the leads
■ Basic specifications (Accuracy guaranteed for 1 year)
Rated output voltage | 500 V DC |
---|---|
Effective maximum indicated value | 1000 MΩ |
Accuracy 1st effective measuring range | ±5 % of indicated value 1 to 500 MΩ |
Lower limit resistance | 0.5 MΩ (measurement resistance value to maintain testing voltage) |
Overload protection | 600 V AC (10 sec.) |
AC voltage measurement | 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 500 kΩ or more input resistance |
Other functions | Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge |
Power supply | LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load) |
Dimensions and mass | 159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead) |
Accessories | Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1 |
