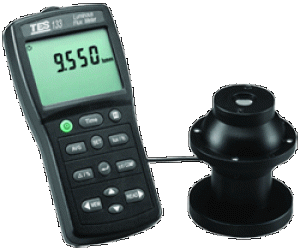

TES0055-133 Luminous Flux Meter

Luminous Flux Meter

  • 4-digit LCD reading.
  • Spectral Sensitivity close to CIE photopic Curve.
  • Auto ranging from 0.05 to 7000 lumens.
  • Accurate and Instant response.
  • Data Hold function.
  • Data memory and read function.

Luminous Flux Meter


  • 4-digit LCD reading.
  • Spectral Sensitivity close to CIE photopic Curve.
  • Auto ranging from 0.05 to 7000 lumens.
  • Accurate and Instant response.
  • Data Hold function.
  • Data memory and read function.
  • Zero function.
  • Ratio function.
  • Sort function.
  • Comparator function.
  • Best for measuring : LEDs, Small lamps, Fiber illuminators.
  • Auto power off function.
  • RS232 Interface.
  • Easy to use.
  • Adapters kit : 2/3/4/5/8/10m/m




Display

4 digit LCD read out

Measuring Range

9.999, 99.99, 999.9, 7000 lumens, Auto ranging (4 step)

Overrange Display

OL is displayed

Resolution

0.001 lumens

Accuracy

0.05 to 0.1 ±7%, 0.1 to 1000 ±1%, 1000 to 7000 ±3%

Integrating Sphere

Diameter

50mm

Sample pore

12.7mm diameter

CIE photopic f ’1

≦6%

Temperature Characteristics

±0.1%/℃

Measuring Rate

Approximately 5 time/sec

Photosensor

Silicon photodiodes

Data Memory Capacity

999 sets. (Direct reading from LCD display)

Data Logger Capacity

40000 sets

Operating/Storage Conditions

0℃ ~ 50℃ <80% RH , -10℃ ~ 60℃ <70%RH

Power Source

6 pcs AAA size Battery

Battery Life (typical)

100 hours

Integrating sphere Lead Length

150 cm (approx.)

Integrating sphere Dimensions

68(Diameter) × 82(H)mm

Dimension

150(L) × 72(W) × 35(H)mm

Weight

470g

Accessories

Carrying case, Instruction manual, Battery, CD software, RS232 cable, AC adaptor, Adapter kit.
