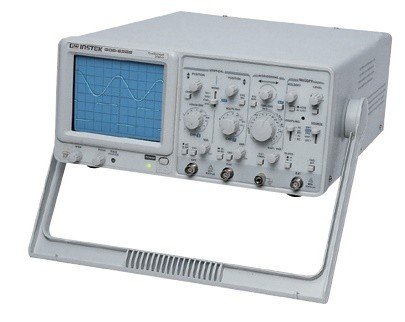

GW Instek GOS-635G/622G

Features

* 35MHz Bandwidth, Dual Channel (GOS-635G)
* 20MHz Bandwidth, Dual Channel (GOS-622G)
* High Sensitivity 1mV/div
* TV Synchronization
* Z-Axis Input
* ALT Triggering Function
* Hold Off Function (GOS-635G,GOS-622G)
* CH1 Output

Description:

The GOS-635G and GOS-622G are general purpose analog oscilloscopes with 35MHz and 20MHz bandwidth, respectively. These products are designed for a wide range of applications ranging from product designs or assembly lines to EE laboratories or class experiments. Featuring a low vertical sensitivity at 1mV/div and versatile triggering, the GOS-635G and GOS-622G can reliably capture small signals. The GOS-635G/622G is the highest performance/price solution in the Test & Measurement market.



Specification :

CRT
Type 6-inch rectangular type with internal graticule
8 x 10 div (1div=1cm)
Z-Axis Input Input Impedance: Approx. 5kΩ
Sensitivity: Above 3Vp-p
Bandwidth: DC ~ 5MHz
VERTICAL SYSTEM
Sensitivity 5mV/div~5V/div±3%,1mV~2mV/div±5%
Bandwidth DC ~ 35MHz (GOS-635G)
DC ~ 20MHz (GOS-622G)
DC ~ 10MHz at 1~ 2mV/div
Rise Time 10ns (35ns at 1mV~2mV/div)for GOS-635G
17.5ns(35ns at 1mV~2mV/div)for GOS-622G
Input Impedance Approx. 1MΩ
Input Coupling AC, DC, GND
Vertical Mode CH1, CH2, DUAL, ADD, CH2 INV
(Dual automatic switching ALT and CHOP)
HORIZONTAL SYSTEM
Sweep Time

0.1μs ~ 0.5s/div ±3%
100ns ~ 50ms/div ±5% (x 10 MAG)
10ns ~ 50ns ±8% (x 10 MAG)
TRIGGER
Trigger Mode AUTO, NORM
Trigger Source CH1, CH2, ALT, LINE, EXT
Trigger Coupling AC, DC, HF REJ, TV
Trigger Slope "+" or "-"
X - Y OPERATION
Sensitivity 5mV ~ 5V/div ±4%
X-axis Bandwidth DC ~ 1MHz
Phase Error 3° or less from DC ~ 50kHz
OUTPUT SIGNAL
Ch1 Signal Output Voltage: approx. 50mV/div into 50Ω
Calibrator Output 1kHz Square wave, 2Vpp ±2%
POWER SOURCE
  AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz
DIMENSIONS & WEIGHT
  310(W) x 150(H) x 455(D) mm; Approx. 8.2kg

Accessories:

User manual x 1, Power cord x 1
GTP-060A-4 : 60MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GOS-635G/GOS-622G (one per channel)

Optional Accessories
GTL-110
  Test lead, BNC-BNC heads
GTC-001  Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002  Instrument cart, 330(W) x 430(D)mm (120V input socket)

Ordering Information:

GOS-635G  35MHz, 2-Channel , Oscilloscope with Hold Off Function
GOS-622G  20MHz, 2-Channel , Oscilloscope with Hold Off Function
