Fluke 115/Fluke 116/Fluke 117 TRMS Digital Multimeter

Category: Fluke





  • Resistance, continuity, frequency, capacitance, and diode test
  • Measures 20 A (30 seconds momentary; 10 A continuous)
  • Large white LED backlight to work in poorly lit areas
  • Compact ergonomic design for one-handed operation
  • Compatible with optional magnetic hanger (ToolPak™)
  • True-rms for accurate measurements on non-linear loads
  • Min/Max/Average with elapsed time to record signal fluctuations
  • CAT III 600 V safety rated

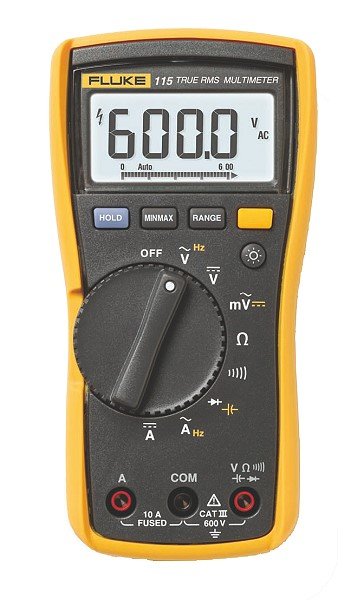

The Fluke 115 is for general purpose electrical and electronic test requirements, the Fluke 115 true-rms digital multimeter provides the perfect answer. Its simple operation, compact design and ease of use makes it perfect for quick verifications and field service use.

The Fluke 115 displays true-rms voltage and current readings with 6000 count resolution, tests diodes, frequency, continuity and capacitance and provides Min/Max/Average readings to record signal fluctuations. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes a snap.

Fluke 115 multimeters are independently tested for safe use in CAT III 600V environments.

Specifications
Accuracy specifications
Function Range Resolution Accuracy ±
([% of Reading] + [Counts])
DC Millivolts 600.0 mV 0.1 mV 0.5 % + 2
DC Volts 6.000 V
60.00 V
600.0 V
0.001 V
0.01 V
0.1 V
0.5 % + 2
AC millivolts
true-rms
600.0 mV 0.1 mV 45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3
AC volts
true-rms
6.000 V
60.00 V
600.0 V
0.001 V
0.01 V
0.1 V
45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3
Continuity 600 Ω 1 Ω Beeper on < 20 W, off > 250 W;
detects opens or shorts of 500 µs or longer
Ohms 600.0 Ω
6.000 kΩ
60.00 kΩ
600.0 kΩ
6.000 MΩ
40.00 MΩ
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
0.9% + 2
0.9% + 1
0.9% + 1
0.9% + 1
0.9% + 1
1.5% + 2
Diode test 2.000 V 0.001 V 0.9 % + 2
Capacitance 1000 nF
10.00 µF
100.0 µF
9999 µF
1 nF
0.01 µF
0.1 µF
1 µF
1.9 % + 2
1.9 % + 2
1.9 % + 2
100 µF to 1000 µF: 1.9 % + 2
> 1000 µF: 5 % + 20
LoZ capacitance (power-up option) 1 nF to 500 µF 10 % + 2 typical
AC amps true-rms
(45 Hz to 500 Hz)
6.000 A
10.00 A
20 A overload for 30 seconds maximum
0.001 A
0.01 A
1.5% + 3
DC amps 6.000 A
10.00 A
20 A overload for 30 seconds maximum
0.001 A
0.01 A
1.0% + 3
Hz (V or A input) 99.99 Hz
999.9 Hz
9.999 kHz
50.00 kHz
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1% + 2
Frequency counter sensitivity
Input range Typical sensitivity (rms sine wave)
5 Hz to 45 Hz 45 Hz to 5 kHz 5 kHz to 10 kHz 10 kHz to 50 kHz
Volts AC 6 V
60 V
600 V
0.2 V
2 V
20 V
0.2V to 0.3V
2V to 3V
0V to 30V
0.3 V to 0.4 V
3 V to 4 V
30 V to 40 V
0.4 V to 1.0 V
4 V to 10 V
40 V to 100 V
AC Amps 6 A
10 A
N/A 0.4 A
0.5 A
N/A N/A
Input characteristics
Function Input impedance
(nominal)
Common mode rejection ratio
(1 kW unbalanced)
Normal mode rejection
Volt AC > 5 MΩ < 100 pF >60dB at dc, 50 or 60Hz -
Volts DC > 10 MΩ < 100 pF >100dB at dc, 50 or 60Hz > 60 dB at 50 or 60Hz
Auto-V LoZ ~3 kΩ < 500 pF > 60dB at dc, 50 or 60Hz -
Ohms Open circuit test voltage Full scale voltage Short circuit current
To 6.0 MΩ To 6.0 MΩ
< 2.7 V dc < 0.7 V dc < 0.9 V dc < 350 µA
Diode Test < 2.7 V dc 2.000 V dc < 1.2 mA
General specifications
Function Description
Maximum voltage
between any
terminal and earth ground
600 V
Surge protection 6 kV peak per IEC 61010-1 600V CAT III, Pollution Degree 2
W Fuse for A input 11 A, 1000 V FAST 17 kA Fuse (Fluke PN 803293)
Display Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec
Temperature Operating: -10°C to +50°C; Storage: -40°C to +60°C
Humidity 0% to 90% to 35°C
75% to 40°C
45% to 50°C
Temperature coefficient 0.1 x (specified accuracy/°C) (< 18°C or > 28°C)
Operating altitude 2,000 meters
Battery 9 Volt Alkaline, NEDA 1604A/IEC 6LR61
Battery life Alkaline: 400 hours typical, without backlight
Safety compliances ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1
Certifications UL, CSA, TUV, N10140 , VDE
IP rating
(dust & water protection)
IP42


Model Description
115 Fluke 115 True RMS Multimeter
Included Accessories

  • 1 - TL75 Test Lead Set
  • 1 - Integrated Holster
  • 1 - User's Manual
  • 1 - 9V Battery

  • Built in thermometer for HVAC applications
  • Microamps to test flame sensors
  • LoZ: helps prevent false readings due to ghost voltage
  • Large white LED backlight to work in poorly lit areas
  • Resistance, continuity, frequency and capacitance
  • Min/Max/Average with elapsed time to record signal fluctuations
  • Compact ergonomic design for one-handed operation
  • Compatible with optional magnetic hanger (ToolPak™)
  • CAT III 600 V safety rated

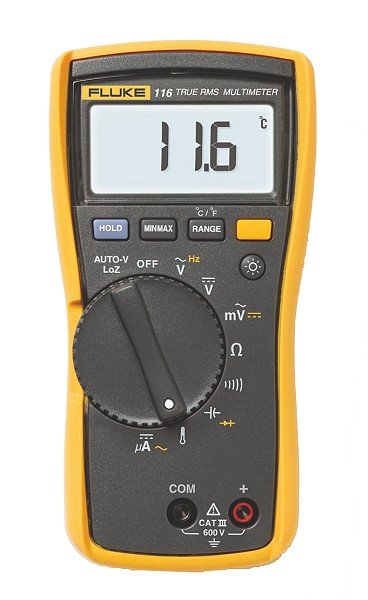

The Fluke 116 was specifically designed for the HVAC professional. It has every-thing needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.

Fluke 116/62 Shown
Fluke 116/62 Combo Kit Includes:
  • 1 - Fluke 116 HVAC Multimeter with Temperature and Microamps
  • 1 - Fluke 62 Infrared Thermometer
  • 1 - ToolPak Magnetic Meter hanging Strap
  • 1 - Fluke C115 Deluxe carrying case with shoulder strap
  • 1 - Velcro Pipe Clamp thermocouple
  • 1 - Fluke 80BK-A Integrated Temperature Probe
  • 1 - Fluke 80AK Thermocouple Adapter

The Fluke HVAC Combo kit is the perfect solution to meet the demands of HVAC Professionals. This combo kit pairs the new Fluke 116 DMM with a Fluke 62 Infrared Thermometer for productive and effective troubleshooting in one total solution, including the new C115 durable soft carrying case for protection and easy transportation.



Fluke 116/322 Shown
Fluke 116/322 HVAC Combo Kit Includes:
  • 1 - Fluke 116 HVAC Multimeter with Temperature and Microamps
  • 1 - Fluke 322 Compact Clamp Meter
  • 1 - ToolPak Magnetic Meter hanging Strap
  • 1 - Fluke C115 Deluxe carrying case with shoulder strap
  • 1 - Velcro Pipe Clamp thermocouple
  • 1 - Fluke 80BK-A Integrated Temperature Probe
  • 1 - Fluke 80AK Thermocouple Adapter

The Fluke HVAC Combo kit is the perfect solution to meet the demands of HVAC Professionals. This combo kit pairs the new Fluke 116 DMM with a Fluke 62 Infrared Thermometer for productive and effective troubleshooting in one total solution, including the new C115 durable soft carrying case for protection and easy transportation.

Specifications
Accuracy specifications
Function Range Resolution Accuracy ±
([% of Reading] + [Counts])
DC Millivolts 600.0 mV 0.1 mV 0.5 % + 2
DC Volts 6.000 V
60.00 V
600.0 V
0.001 V
0.01 V
0.1 V
0.5 % + 2
Auto-V LoZ true-rms 600.0 V 0.1 V DC, 45Hz to 500Hz: 2.0%+3
500 Hz to 1 kHz: 4.0% + 3
AC millivolts
true-rms
600.0 mV 0.1 mV 45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3
AC volts
true-rms
6.000 V
60.00 V
600.0 V
0.001 V
0.01 V
0.1 V
45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3
Continuity 600 Ω 1 Ω Beeper on < 20 W, off > 250 W;
detects opens or shorts of 500 µs or longer
Ohms 600.0 Ω
6.000 kΩ
60.00 kΩ
600.0 kΩ
6.000 MΩ
40.00 MΩ
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
0.9% + 2
0.9% + 1
0.9% + 1
0.9% + 1
0.9% + 1
1.5% + 2
Diode test 2.000 V 0.001 V 0.9 % + 2
Capacitance 1000 nF
10.00 µF
100.0 µF
9999 µF
1 nF
0.01 µF
0.1 µF
1 µF
1.9 % + 2
1.9 % + 2
1.9 % + 2
100 µF to 1000 µF: 1.9 % + 2
> 1000 µF: 5 % + 20
Temperature
(K-Type thermocouple)
-40 °C to 400 °C
-40 °F to 752 °F
0.1°C
0.2°F
1 % + 10
1 % + 18
LoZ capacitance (power-up option) 1 nF to 500 µF 10 % + 2 typical
AC µAmps true-rms
 (45 Hz to 1 kHz)
600.0 µA  0.1 µA  1.5 % + 3 (2.5 % + 3 > 500 Hz)
DC µAmps true-rms  600.0 µA  0.1 µA  1.0 % + 2
Hz (V input)  99.99 Hz
999.9 Hz
9.999 kHz
50.00 kHz
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 % + 2
Frequency counter sensitivity
Input range Typical sensitivity (rms sine wave)
5 Hz to 45 Hz 45 Hz to 5 kHz 5 kHz to 10 kHz 10 kHz to 50 kHz
Volts AC 6 V
60 V
600 V
0.2 V
2 V
20 V
0.2V to 0.3V
2V to 3V
0V to 30V
0.3 V to 0.4 V
3 V to 4 V
30 V to 40 V
0.4 V to 1.0 V
4 V to 10 V
40 V to 100 V
AC Amps 6 A
10 A
N/A 0.4 A
0.5 A
N/A N/A
Input characteristics
Function Input impedance
(nominal)
Common mode rejection ratio
(1 kW unbalanced)
Normal mode rejection
Volt AC > 5 MΩ < 100 pF >60dB at dc, 50 or 60Hz -
Volts DC > 10 MΩ < 100 pF >100dB at dc, 50 or 60Hz > 60 dB at 50 or 60Hz
Auto-V LoZ ~3 kΩ < 500 pF > 60dB at dc, 50 or 60Hz -
Ohms Open circuit test voltage Full scale voltage Short circuit current
To 6.0 MΩ To 6.0 MΩ
< 2.7 V dc < 0.7 V dc < 0.9 V dc < 350 µA
Diode Test < 2.7 V dc 2.000 V dc < 1.2 mA
General specifications
Function Description
Maximum voltage
between any
terminal and earth ground
600 V
Surge protection 6 kV peak per IEC 61010-1 600V CAT III, Pollution Degree 2
W Fuse for A input 11 A, 1000 V FAST 17 kA Fuse (Fluke PN 803293)
Display Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec
Temperature Operating: -10°C to +50°C; Storage: -40°C to +60°C
Humidity 0% to 90% to 35°C
75% to 40°C
45% to 50°C
Temperature coefficient 0.1 x (specified accuracy/°C) (< 18°C or > 28°C)
Operating altitude 2,000 meters
Battery 9 Volt Alkaline, NEDA 1604A/IEC 6LR61
Battery life Alkaline: 400 hours typical, without backlight
Safety compliances ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1
Certifications UL, CSA, TUV, N10140 , VDE
IP rating
(dust & water protection)
IP42
Ordering Information
Model Description
116 Fluke 116 HVAC True RMS Multimeter
Included Accessories

  • 1 - TL75 Test Lead Set
  • 1 - 80BK-A Integrated Temperature Probe
  • 1 - Integrated Holster
  • 1 - User's Manual
  • 1 - 9V Battery
Combo Kits
11662MAXPLUS Fluke 116/62 MAX+ HVAC Technician's Combo Kit

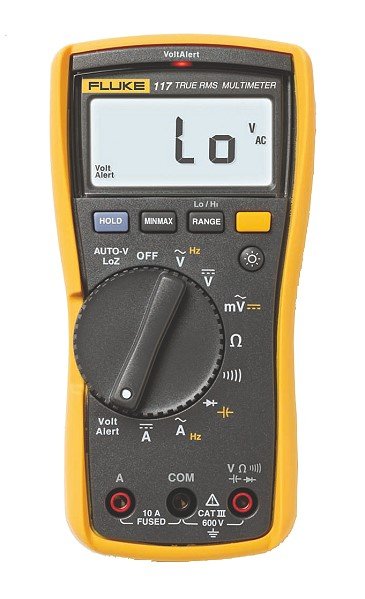

Fluke 117
Electrician's Multimeter
with Non-Contact Voltage Detector



  • VoltAlert™ technology for non-contact voltage detection
  • AutoVolt automatic ac/dc voltage selection
  • LoZ: helps prevent false readings due to ghost voltage
  • Large white LED backlight to work in poorly lit areas
  • True-rms for accurate measurements on non-linear loads
  • Measures 20 A (30 seconds momentary; 10 A continuous)
  • Resistance, continuity, frequency and capacitance
  • Min/Max/Average to record signal fluctuations
  • Compatible with optional magnetic hanger (ToolPak) for hands free operation
  • CAT III 600 V safety rated

The Fluke 117 has the features and functions professional electricians need to get their job done. The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The compact design makes it easy to hold and use one-handed. Integrated VoltAlert Technology allows testing for non-contact voltage directly from the meter to help get the job done faster. LoZ technology prevents false readings due to "ghost voltage" and helps accurately diagnose problems. Rely on the Fluke 117 to make your everyday measurements – up to 600 volts ac or dc, 40 MΩ, diode test and exceptionally fast continuity.



Fluke 117/322 Shown
Fluke 117/322 Combo Kit Includes:
  • 1 - Fluke 117 TRMS Digital Multimeter with Non-Contact voltage detection
  • 1 - Fluke 322 Compact clamp meter
  • 1 - Fluke TL75 Hard Point Test Lead Set
  • 1 - ToolPak Magnetic Meter hanging Strap
  • 1 -Fluke C115 Deluxe carrying case with shoulder strap

The Fluke Electrician's Combo kit is the perfect solution to meet the demands of Electrical Professionals. This combo kit pairs the new Fluke 117 DMM with a Fluke 322 clamp meter for productive and effective troubleshooting in one total solution, including the new C115 durable soft carrying case for protection and easy meter transportation.





ing case for protection and easy meter transportation.

Specifications
Accuracy specifications
Function Range Resolution Accuracy ±
([% of Reading] + [Counts])
DC Millivolts 600.0 mV 0.1 mV 0.5 % + 2
DC Volts 6.000 V
60.00 V
600.0 V
0.001 V
0.01 V
0.1 V
0.5 % + 2
AC millivolts
true-rms
600.0 mV 0.1 mV 45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3
AC volts
true-rms
6.000 V
60.00 V
600.0 V
0.001 V
0.01 V
0.1 V
45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3
Continuity 600 Ω 1 Ω Beeper on < 20 W, off > 250 W;
detects opens or shorts of 500 µs or longer
Ohms 600.0 Ω
6.000 kΩ
60.00 kΩ
600.0 kΩ
6.000 MΩ
40.00 MΩ
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
0.9% + 2
0.9% + 1
0.9% + 1
0.9% + 1
0.9% + 1
1.5% + 2
Diode test 2.000 V 0.001 V 0.9 % + 2
Capacitance 1000 nF
10.00 µF
100.0 µF
9999 µF
1 nF
0.01 µF
0.1 µF
1 µF
1.9 % + 2
1.9 % + 2
1.9 % + 2
100 µF to 1000 µF: 1.9 % + 2
> 1000 µF: 5 % + 20
LoZ capacitance (power-up option) 1 nF to 500 µF 10 % + 2 typical
AC amps true-rms
(45 Hz to 500 Hz)
6.000 A
10.00 A
20 A overload for 30 seconds maximum
0.001 A
0.01 A
1.5% + 3
DC amps 6.000 A
10.00 A
20 A overload for 30 seconds maximum
0.001 A
0.01 A
1.0% + 3
Hz (V or A input) 99.99 Hz
999.9 Hz
9.999 kHz
50.00 kHz
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1% + 2
Frequency counter sensitivity
Input range Typical sensitivity (rms sine wave)
5 Hz to 45 Hz 45 Hz to 5 kHz 5 kHz to 10 kHz 10 kHz to 50 kHz
Volts AC 6 V
60 V
600 V
0.2 V
2 V
20 V
0.2V to 0.3V
2V to 3V
0V to 30V
0.3 V to 0.4 V
3 V to 4 V
30 V to 40 V
0.4 V to 1.0 V
4 V to 10 V
40 V to 100 V
AC Amps 6 A
10 A
N/A 0.4 A
0.5 A
N/A N/A
Input characteristics
Function Input impedance
(nominal)
Common mode rejection ratio
(1 kW unbalanced)
Normal mode rejection
Volt AC > 5 MΩ < 100 pF >60dB at dc, 50 or 60Hz -
Volts DC > 10 MΩ < 100 pF >100dB at dc, 50 or 60Hz > 60 dB at 50 or 60Hz
Auto-V LoZ ~3 kΩ < 500 pF > 60dB at dc, 50 or 60Hz -
Ohms Open circuit test voltage Full scale voltage Short circuit current
To 6.0 MΩ To 6.0 MΩ
< 2.7 V dc < 0.7 V dc < 0.9 V dc < 350 µA
Diode Test < 2.7 V dc 2.000 V dc < 1.2 mA
General specifications
Function Description
Maximum voltage
between any
terminal and earth ground
600 V
Surge protection 6 kV peak per IEC 61010-1 600V CAT III, Pollution Degree 2
W Fuse for A input 11 A, 1000 V FAST 17 kA Fuse (Fluke PN 803293)
Display Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec
Temperature Operating: -10°C to +50°C; Storage: -40°C to +60°C
Humidity 0% to 90% to 35°C
75% to 40°C
45% to 50°C
Temperature coefficient 0.1 x (specified accuracy/°C) (< 18°C or > 28°C)
Operating altitude 2,000 meters
Battery 9 Volt Alkaline, NEDA 1604A/IEC 6LR61
Battery life Alkaline: 400 hours typical, without backlight
Safety compliances ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1
Certifications UL, CSA, TUV, N10140 , VDE
IP rating
(dust & water protection)
IP42

Model Description
117 Fluke 117 Electricians True RMS Multimeter
117322 Fluke 117/322 Electricians Multimeter and Clamp Meter Combo Kit
Included Accessories

  • 1 - TL75 Test Lead Set
  • 1 - Integrated Holster
  • 1 - User's Manual
  • 1 - 9V Battery







Location

Ask about this product
