SEW0058- BASIC APPLIANCE/PLUG WIRING CHECKER(PRIMETEST)




FEATURES
● This a simplified Version of an appliance tester which use
    low voltage and low current to perform it's checks.

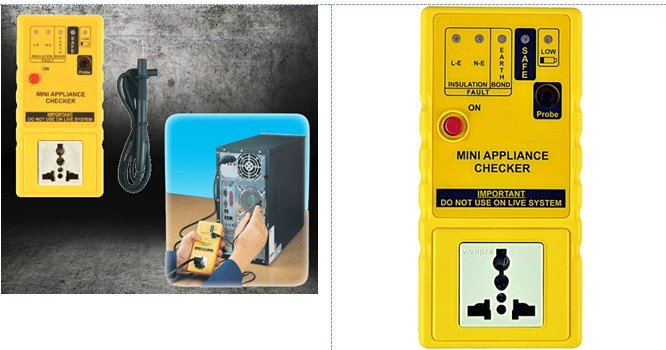

● Application Example
   The appliance is plugged into the mini appliance checker, then the
   probe make contact with the protective conductor.
● Other appliance checking
   Washing Machine Toaster Iron Dish Washer
   Stove

  SPECIFICATIONS

ELECTRICAL
Resistance Ranges    The L-E led will lit when the resistance between Line
   to Earth is lower than 1MΩ ±5% .
   The N-E led will lit when the resistance between Neutral to Earth is lower
   than 1MΩ±5%
The EARTH BOND led will lit when the resistance between the EARTH to the
Probe is higher than 10Ω±5% .
Test Current    Line to Earth test current is 9uA maximum.
   Neutral to Earth test current is 9uA maximum.
   Earth to Probe test current is 2.3mA maximum.
Maximum Output
Voltage
   9V rm
Response Time    0.1secs nominal
Voltage Withstand 6V AC between any two terminals
Battery Low Indication
point
7V nominal
MECHANICAL
Size 72mm x 150mm x 36 mm
Material ABS
Weight
(less carrying case)
Approx.194g (with battery)
Display LEDs
ENVIRONMENTAL
Operating temperature
Range
-15 ºC to + 55 ºC
Storage Temperature -20 ºC to + 70 ºc
General
Battery 9V(6F22) x 1
Safety standard EN 61326-1
