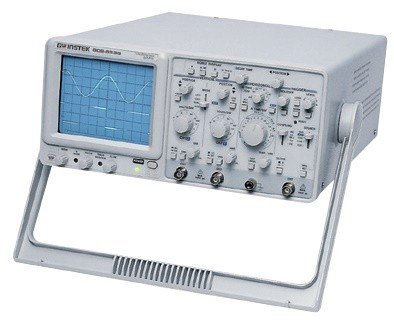

GW INSTEK GOS-653G/652G

Features:

* 50MHz Bandwidth, Dual Channel
* Delayed Sweep (GOS-653G)
* Built-In Delay Line (GOS-653G)
* TV Synchronization
* CH1 Output
* Z-Axis Modulation Input
* ALT Triggering Function
* Hold Off Function
* Trigger Level Lock Function

Description:

The 50MHz GOS-653G/652G Series is an example of classic analog oscilloscope design. The GOS-653G /652G cover a broad range of industry applications, such as product design, assembly lines, repair & servicing, and educational purposes for EE laboratories and class experiments. Coupled with various trigger functions (Auto, Norm, TV), complex waveforms can be easily triggered for use in diverse applications. The ALT Trigger function enables users to observe signals from dual channels simultaneously. The Hold Off function helps stabilize sophisticated signals within repetitive frequencies or periods. Delayed sweep magnification (GOS-653G) can display and zoom in waveforms at the same time. For classic design and operation applicable to a wide range of applications, the GOS-653G/652G Series offers extra value.

Specification;

CRT
Type 6-inch rectangular type with internal graticule
0%, 10%, 90% and 100% markers.
8 x 10 div (1div=1cm)
Accelerating Potential 12kV
Illumination Continuously adjustable
Z-axis Input

Input Impedance: Approx. 5kΩ
Sensitivity:Above 3Vp-p
Bandwidth:DC ~ 5MHz
VERTICAL SYSTEM
Sensitivity 5mV ~ 5V/div±3%,1mV ~ 2mV/div±5%
Bandwidth DC ~ 50MHz
DC ~ 15MHz at 1 ~ 2mV/div
Rise Time 7ns (23.3ns for 1 ~ 2mV/div)
Signal Delay

leading edge can be monitored (GOS-653G only)

Input Impedance Approx. 1MΩ
Input Coupling  AC, DC, GND
Vertical Mode

CH1, CH2, DUAL, ADD, CH2 INV
(Dual automatic switching ALT and CHOP)
HORIZONTAL SYSTEM
A(main) Sweep Time 0.1μs ~ 0.5s/div ±3%
100ns ~ 50ms/div ±5% (x 10 MAG)
10ns ~ 50ns ±8% (x 10 MAG)
B(delay) Sweep Time 0.1μs ~ 0.5ms/div ±3%
100ns ~ 50μs/div ±5% (x 10 MAG)
10ns ~ 50ns/div ±8% (x 10 MAG)
Delay Time 1μs ~ 5ms/div ±5% (GOS-653G only)
Delay Time Jitter Better than 1:10000 (GOS-653G only)
TRIGGER
Trigger Mode AUTO, NORM, SINGLE
Trigger Source CH1, CH2, ALT, LINE, EXT
Trigger Coupling AC, DC, HF REJ, TV
Trigger Slope "+" or "-"
X-Y OPERATION
Sensitivity 5mV ~ 5V/div±4%
X-axis Bandwidth DC ~ 2MHz
Phase Error 3° or less from DC ~ 100kHz

OUTPUT SIGNAL

Ch1 Signal Output Voltage: approx. 50mV/div into 50Ω
Calibrator Output 1kHz Square wave, 2Vpp±2%
POWER SOURCE
  AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz
DIMENSIONS & WEIGHT
  310(W) x 150(H) x 455(D) mm; Approx. 8.2kg

Accessories:

User manual x 1, Power cord x 1
GTP-060A-4: 60MHz (10:1/1:1) Switchable Passive Probe (one per channel)

Optional Accessories
GTL-110
 Test lead, BNC-BNC heads
GTC-001  Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002  Instrument cart, 330(W) x 430(D)mm (120V input socket)

Ordering Information:

GOS-653G  50MHz, 2 channel analog oscilloscope with Delayed Sweep
GOS-652G  50MHz, 2 channel analog oscilloscope
